Plug-and-Play Measurement Bypass

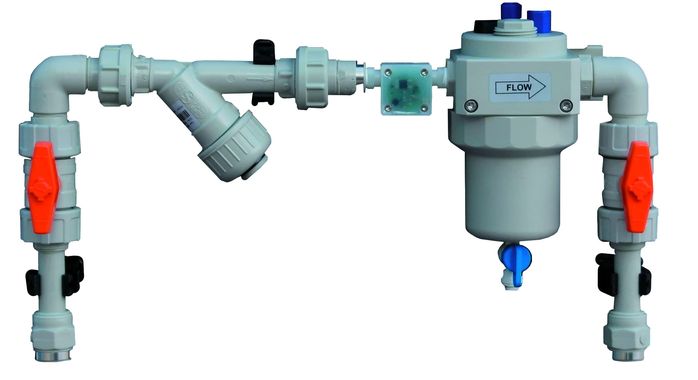

If you don`t want to measure directly inside your process/tank/bath/... but in a bypass section - no problem, we have a ready-to-use solution for you: our pre-assembled flow measurement section consisting of
- an in-line sensor housing with screw connections for 3 sensors (PG 13,5 *), material: PP + cup: PP or PVC/Plexi,
- ball valves at inlet which offers the possibility to close the bypass (e.g. for maintenance purposes),
- a strainer and
- a flow guard.
* Optional available for:
- conductivity probe (inductive) with 3/8 " thread
- chlorine or chlorine dioxide probes with 1" thread
Download
In-Line Sensor Housing PP
Of course, you can also install the sensor housing directly in-line (optionally with a PP or transparent Plexiglass cup).
Examples of this fitting integrated into dosing skids can also be found here.
