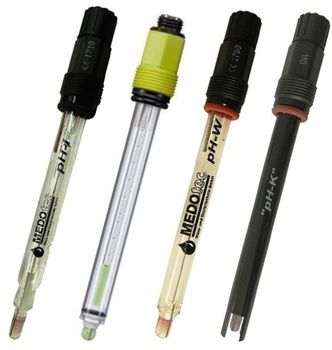

Measuring cells for chemical proccessing, wastewater treatment, for galvanic baths, in aquaristics and swimming pool technology ...

• measuring range: pH0 ... pH14
• temperature: -5 ... 80 ° C
• material: plastics or glass
• connection: PG 13.5 thread

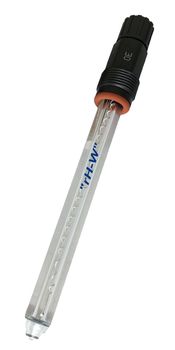

Redox measuring cells are used for industrial water treatment, raw water, wastewater and surface water treatment, as well as in swimming pool technology, drinking water treatment, handling of water-soluble paints and electroplating.

• measuring range: +/- 2000 mV
• temperature: -5 ... 80 ° C
• material: plastics or glass
• connection: PG 13.5 thread

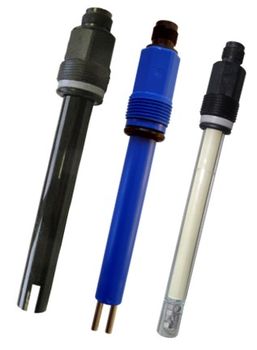

Conductive conductivity measurement is an important measurement method in fluid analysis, covering lower microsiemens ranges (μS/cm). Thanks to the design of the electrode shaft in polysulfone, plastics or glass for chemical resistance and the widely used PG 13.5 screw thread our conductivity sensors can be used almost universally. Temperature compensation is included via the integrated temperature sensor.

• measuring range: 0 ... 20 or 0 ... 50 mS/cm (depending on material)
• temperature: max. 100 ° C
• material: polysulfone, plastics or glass
• connection: PG 13.5 thread

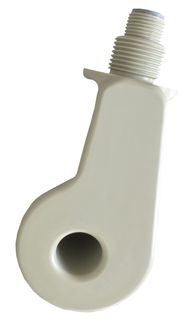

The inductive conductivity measurement is a non-contact measurement method and is not affected by dirt in the test water. Our inductive conductivity measuring cell has a measuring range of up to 150 millisiemens per cm and a 3/8 "screw thread - of course our product range covers the matching immersion fitting or in-line sensor housing!

• measuring range: 150 mS/cm
• temperature: max. 80 ° C
• material: PP
• connection: 3/8 "
