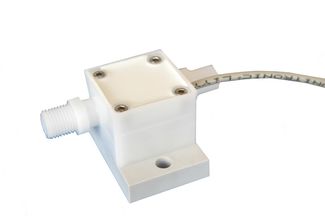

Flow Sensor R2
Technical Features:
- flow ranges:
- R2 D1,2: 1.0 ... 60 l/h
- R2 D1,7: 2.5 ... 150 l/h
- R2 D03: 6.0 ... 250 l/h
- R2 OD: 15 ... 350 l/h
- measuring ranges:
- R2 D1,2: 3.0 ... 50 l/h
- R2 D1,7: 6.0 ... 100 l/h
- R2 D03: 15 ... 200 l/h
- R2 OD: 30 ... 300 l/h
- viscosity: approx. 1 ... 10 cST
- measuring accuracy: +/- 2 %
- repeatability: < 0.8 %
- operating / burst pressure: 10 bar / > 30 bar
- operating temperature: -10 ... 80° C
- connection:
- 1/4" male
- 5/8" UNF
Materials:
- housing + rotor: ECTFE or POM
- seals (optional): FKM/Viton, EPDM or Kalrez
