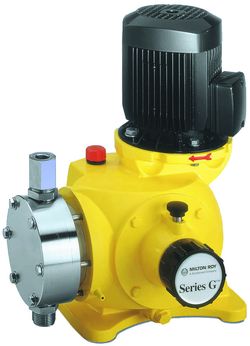

Series GB - Motor-Driven Dosing Pumps

The GB series is also made of metal with a housing made of cast aluminum. This model allows the highest flow rates at up to 1200 l/h and operates at a pressure of up to 10 bar.

Technical specifications:

• Flow rate: max. 1200 l/h
• Pressure: max. 10 bar
• Adjustable stroke length: 0 ... 100%
• Medium temperature: max. 50 ° C
• Maximum inlet pressure: 2 bar
• Maximum suction height: 4 m water column
• Accuracy: approx. 2%
• Aluminum housing
• Diaphragm made of PTFE
• Protection class: IP55

Motor data:

• 230/400 V - 50/60 Hz - 3-phase

Liquid end in various materials:

• Polypropylene (PP)
• PVDF
• Stainless steel (316L)
• Special designs for e.g. Polyelectrolyte, suspensions, highly concentrated sulfuric acid, ...

Accessories:
A wide range of accessories is available for your specific requirements, please don`t hesitate to contact us! Here are some examples:

• buffer tanks
• safety and non-return valves
• metering tubes
• ...
