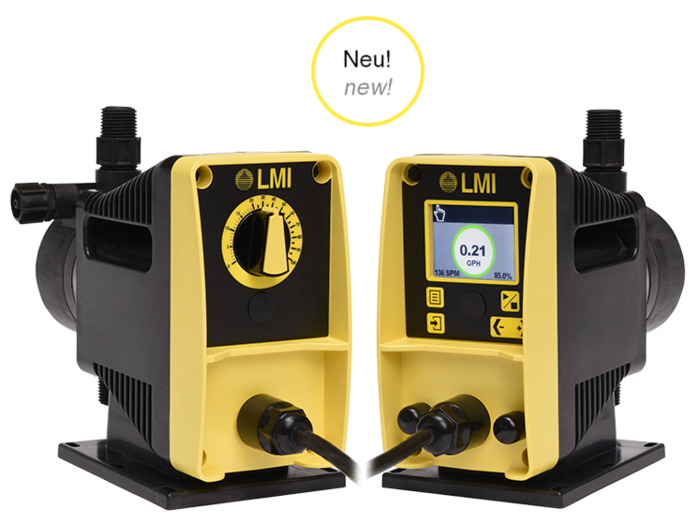

PD Series metering pump is the new standard in water treatment, includes an improved drive design, all new electronics, and proven FASTPRIME™ liquid ends. The manual model offers precision even at lower flow rates. The enhanced model offers external control and a large graphical display to provide intuitive access to advanced features such as calibration assist, system and user totalizers, the new STAYPRIME™ degassing technology, and more.


output: up 8 ml/h to 7.6 l/h
pressure: max. 30 bar
max. stroke: 160 strokes per minute
repetitive accuracy: +/- 3.0 %
steady state accuracy: +/- 3.0 %
protection class: IP65


Features:

• universal 115-230V, 50/60 Hz power supply
• capacity control with constant stroke length to maintain calibration across the adjustable range
• advanced electronics with dynamic compensation for temperature and voltage conditions
• fastPrime™ liquid ends (standard)
• autoPrime™ liquid ends (optional), in particular for degassing products
• 2.4” Color LCD
• external control inputs
• calibration assist
• system & user totalizers
• stayPrime™ degassing technology

Liquid End Materials :

• PP (Polypropylene)
• PVDF
• stainless steel (316L)
• acrylic

Accessories:

• backpressure valves
• safety valves
• pulsation dampeners
• calibration columns
• degassing valves and systems

Applications:

• water treatment
• waste water treatment
• agricultural industry
• chemical industry
• oil & gas
• power generation
• pulp & paper industry
• textile industry
